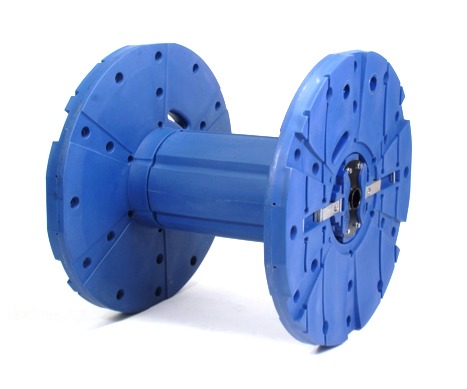

Generation I Design

R-2 PRODUCTS

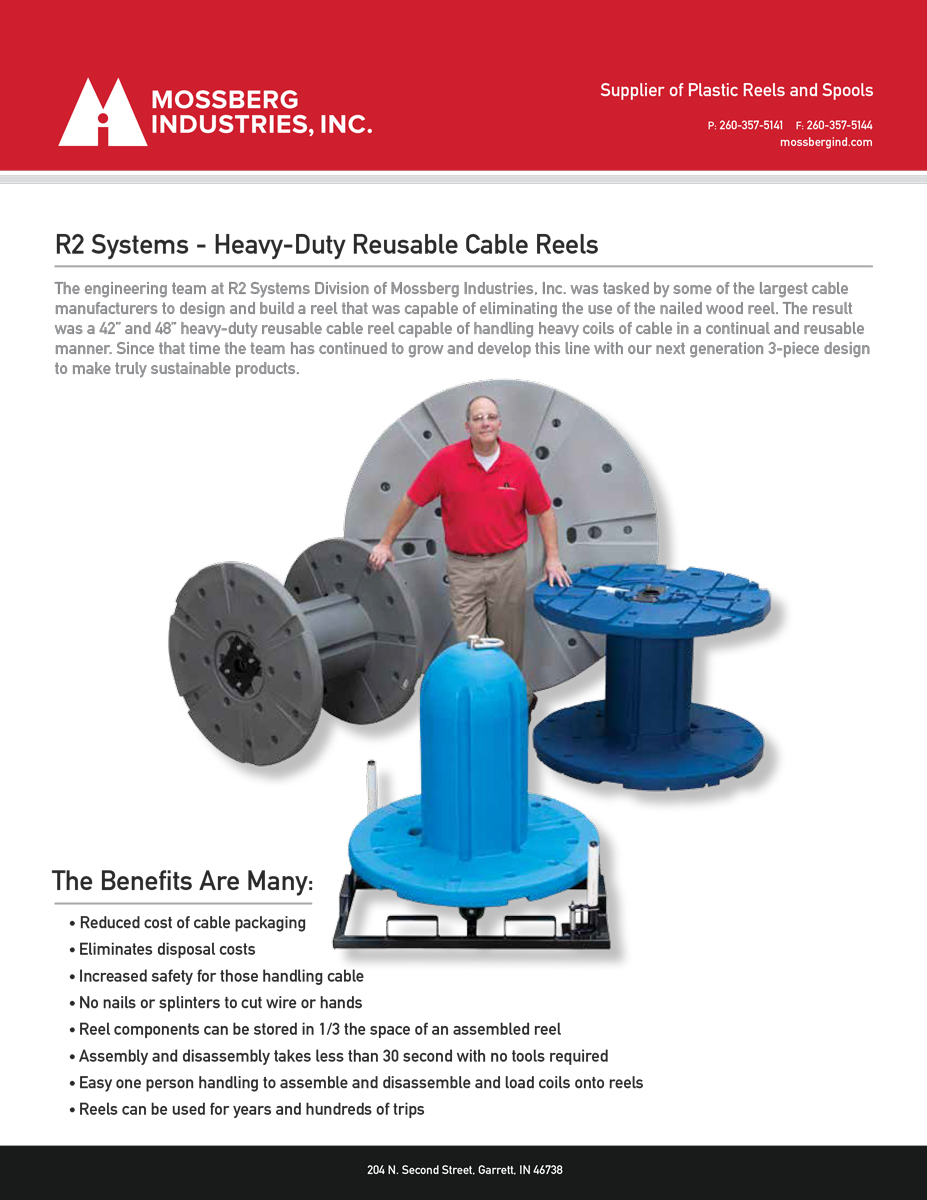

R–2 Systems Replace Wood with EXTRA-Heavy Duty Plastic Reels

The engineering team at R2 Systems Division of Mossberg Industries, Inc. was tasked by some of the largest cable manufacturers to design and build a reel that was capable of eliminating the use of the nailed wood reel. The result was a 42″ and 48″ heavy-duty reusable cable reel capable of handling heavy coils of cable in a continual and reusable manner. Since that time the team has continued to grow and develop this line with our next generation 3-piece design to make truly sustainable products.

The Benefits are many:

  • Reduced Cost of Cable Packaging
  • Eliminates Disposal Costs
  • Increased Safety for those handling cable
  • No Nails or Splinters to cut Wire or Hands
  • Reduced Freight Cost for Cable Deliveries
  • Reel components can be stored in 1/3 space of an assembled reel
  • Assembly and disassembly takes less than 30 seconds with no tools required
  • Easy one person handling to assemble and disassemble and load coils onto reels
  • Reels can be used for years and hundreds of trips

The Features are smart:

  • Steel Reinforcement plates for arbor hole support
  • “Flat” locations every 90 degrees on flange – No need for chocks
  • Custom colors available for customer and product ID requirements
  • Impact modifiers for strength and durability
  • UV Stabilizers for long-life outdoors

The Results are in:

  • Truly Sustainable and Environmentally-Friendly cable handling
  • Wide Scale Implementation
  • Clean Room and Desert Room compatible
  • Tangible and Measurable Savings
R-2 Systems Reusable Plastic Dome & Turntable System
  • Pay-off wire directly from a pickup truck, eliminating the need for line truck and A-frame trailers
  • Loaded reels can be picked up from any direction by a small forklift and placed in the bed of a truck or onto a flatbed trailer
  • Pay-off wire efficiently as the turntable glides on four heavy-duty industrial casters
  • Increased productivity in the field by reducing the labor needed to pay-off wire
  • SAFETY – The lazy-susan style reduces the chance of injury by eliminating the need to place loaded wooden reels on A-frame trailer or trucks
r2-2

Generation II Design

r2-3

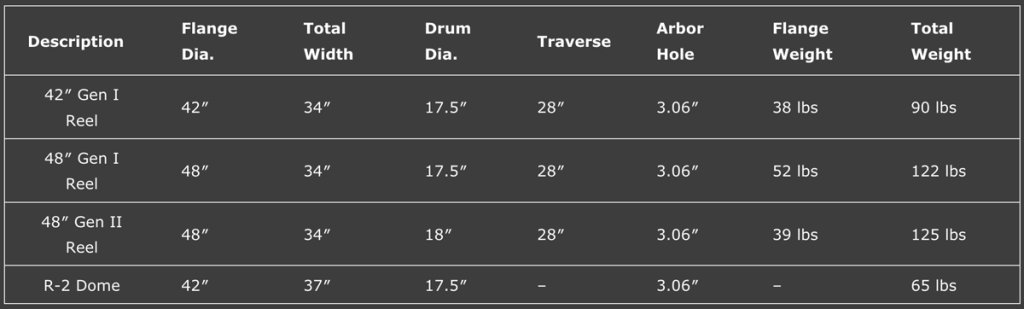

Description Flange Dia. Total Width Drum Dia. Traverse Arbor Hole Flange Weight Total Weight
42″ Gen I Reel 42″ 34″ 17.5″ 28″ 3.06″ 38 lbs 90 lbs
48″ Gen I Reel 48″ 34″ 17.5″ 28″ 3.06″ 52 lbs 122 lbs
48″ Gen II Reel 48″ 34″ 18″ 28″ 3.06″ 39 lbs 125 lbs
R-2 Dome 42″ 37″ 17.5″ 3.06″ 65 lbs
