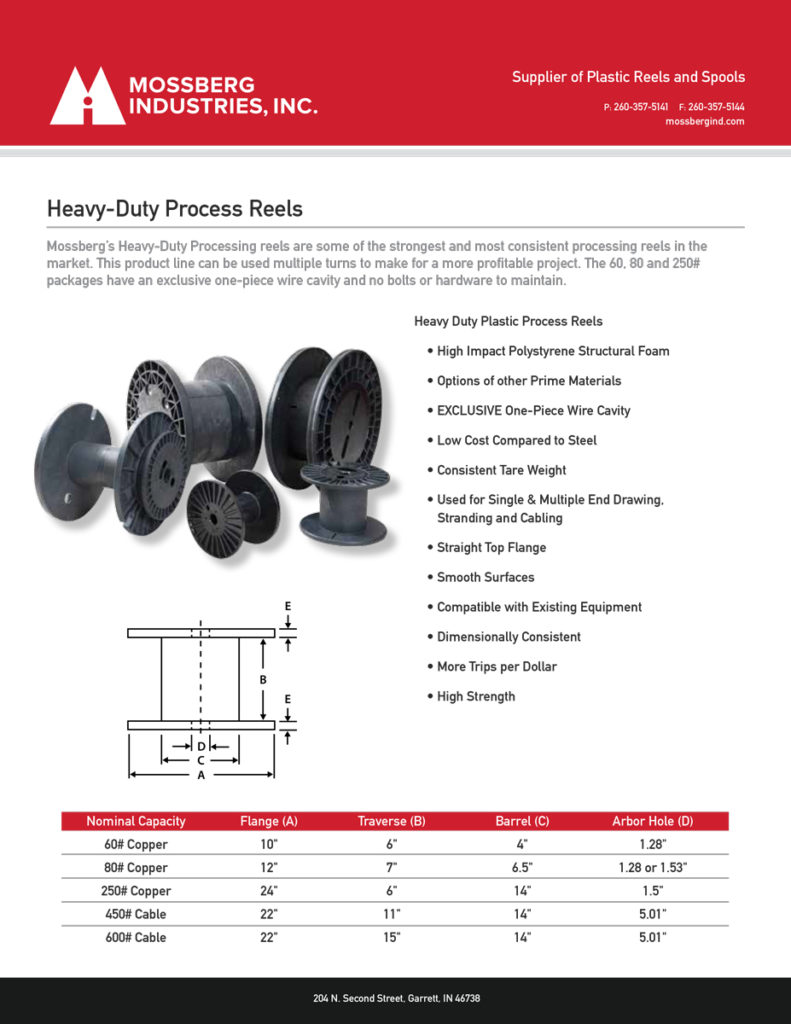

HEAVY-DUTY PROCESSING

Heavy Duty Plastic Process Reels and Structural Foam Reels
  • High Impact Polystyrene Structural Foam
  • EXCLUSIVE One-Piece Wire Cavity
  • Low Cost Compared to Steel
  • Consistent Tare Weight
  • Used for Single & Multiple End Drawing, Stranding and Cabling
  • Straight Top Flange
  • Smooth Surfaces
  • Comparable with Existing Equipment
  • Dimensionally Consistent
  • Consistent Tare Weight
  • More Trips per Dollar
  • High Strength

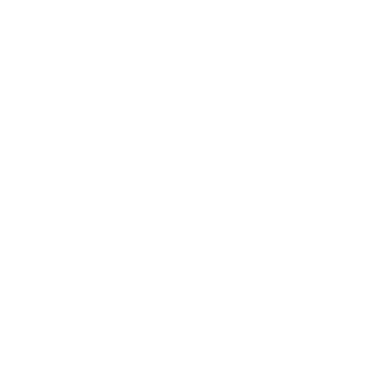

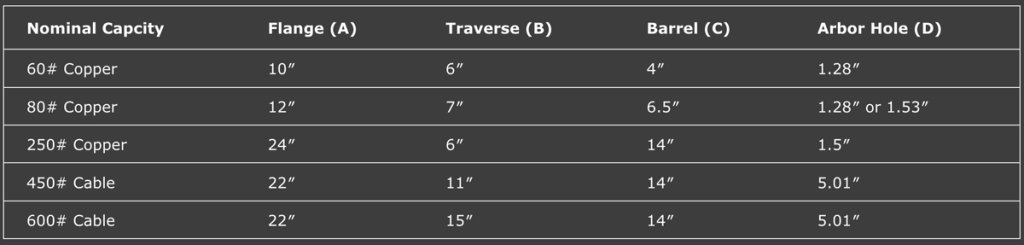

Nominal Capcity Flange (A) Traverse (B) Barrel (C) Arbor Hole (D)
60# Copper 10″ 6″ 4″ 1.28″
80# Copper 12″ 7″ 6.5″ 1.28″ or 1.53″
250# Copper 24″ 6″ 14″ 1.5″
450# Cable 22″ 11″ 14″ 5.01″
600# Cable 22″ 15″ 14″ 5.01″
